點擊圖片查看原圖YB-Ea8 ,YB-Ea16,YB-Ea25,YB-Ea32,YB-Ea40 ,YB-Ea50,高性能葉片泵,生產廠家,價格

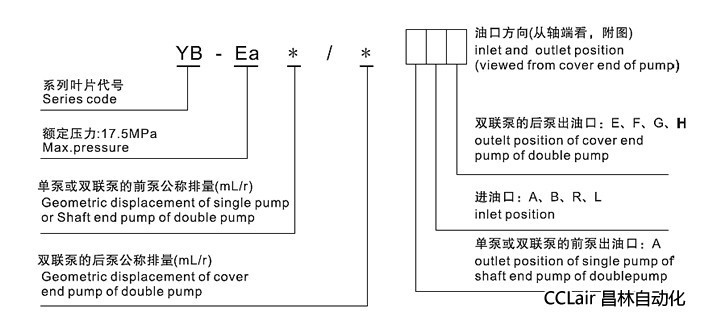

型號說明
YBEa 系列單泵技術參數
| 系列號 | 型號 | 排量代號(mL/r) | 流量(L/min) | 最高轉速(r/min) | 最高壓力(MPa) | 重量(Kg) |
| 10V | YB-Ea8 | 8 | 10 | 600-1800 | 16 | 12.5 |
| YB-Ea16 | 17 | 22 | ||||
| YB-Ea25 | 24 | 32 | ||||
| YB-Ea32 | 32 | 43 | ||||
| 20V | YB-Ea40 | 42 | 56 | 16.5 | ||
| YB-Ea50 | 51 | 69 | ||||
| YB-Ea63 | 63 | 84 | ||||
| 30V | YB-Ea80 | 81 | 110 | 24.5 | ||
| YB-Ea100 | 98 | 132 | ||||
| YB-Ea125 | 122 | 164 | ||||
| 40V | YB-Ea160 | 162 | 224 | 38 | ||
| YB-Ea200 | 194 | 267 | ||||
| YB-Ea220 | 212 | 292 | ||||
| 50V | YB-Ea250 | 252 | 347 | 10 | 70 | |
| YB-Ea315 | 316 | 435 | ||||
| YB-Ea355 | 345 | 474 |
YBEa 系列雙泵技術參數
| 系列號 | 軸端泵排量代號 | 蓋端泵排量代號 |
| 21V | 40、50、63 | 8、16、25、32 |
| 31V | 80、100、125 | 8、16、25、32 |
| 32V | 80、100、125 | 40、50、63 |
| 41V | 160、200、220 | 8、16、25、32 |
| 42V | 160、200、220 | 40、50、63 |
| 43V | 160、200、220 | 80、100、125 |

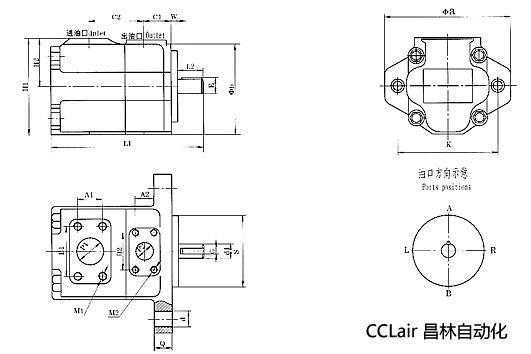

YBEa 系列單泵外形尺寸
| 系列號 | A1 | A2 | a | B1 | B2 | b | C1 | C2 | d | E | d1 | G |
| 10V | 32 | 22.2 | 176 | 60 | 47.6 | 105 | 32 | 72 | 14 | 22.5 | 20 | 6 |
| 20V | 35 | 26 | 176 | 70 | 52 | 120 | 39 | 83 | 14 | 28 | 25 | 8 |
| 30V | 43 | 32 | 216 | 78 | 60 | 143 | 40 | 85 | 18 | 35 | 32 | 10 |
| 40V | 62 | 35 | 216 | 108 | 70 | 150 | 47 | 110 | 18 | 35 | 32 | 10 |
| 系列號 | H1 | H2 | K | L1 | L2 | M1 | M2 | P1 | P2 | Q | S | W |
| 10V | 135 | 76 | 140 | 189 | 36 | M10 | M10 | 32 | 19 | 15 | 100 | 9 |
| 20V | 139 | 76 | 140 | 214 | 42 | M12 | M10 | 38 | 25 | 16 | 100 | 9 |
| 30V | 157 | 83 | 180 | 254 | 58 | M12 | M12 | 50 | 32 | 19 | 125 | 9 |
| 40V | 178 | 94 | 180 | 288 | 58 | M16 | M12 | 75 | 38 | 20 | 125 | 9 |
| 系列號 | A1 | A2 | A3 | a | B1 | B2 | B3 | b | C1 | C2 | C3 | D | d1 | d | E | G |
| 21V | 50 | 26.2 | 22.2 | 176 | 90 | 52.4 | 47.6 | 124 | 39 | 99 | 87 | 92 | 25 | 14 | 28 | 8 |
| 31V | 62 | 32 | 22.2 | 216 | 108 | 60 | 47.6 | 143 | 40 | 114 | 100 | 112 | 32 | 18 | 35 | 10 |
| 41V | 70 | 35 | 22.2 | 216 | 120 | 70 | 47.6 | 150 | 47 | 119 | 120 | 134 | 32 | 18 | 35 | 10 |
| 32V | 62 | 32 | 26 | 216 | 108 | 60 | 52 | 143 | 40 | 114 | 109 | 112 | 32 | 18 | 35 | 10 |
| 42V | 70 | 35 | 26 | 216 | 120 | 70 | 52 | 150 | 47 | 119 | 136 | 134 | 32 | 18 | 35 | 10 |
| 系列號 | H1 | H2 | H3 | H4 | K | L1 | L2 | M1 | M2 | M3 | P1 | P2 | P3 | Q | S | W |
| 21V | 84 | 76 | 76.2 | 150 | 140 | 301.5 | 42 | M12 | M10 | M10 | 63 | 25 | 19 | 15 | 100h8 | 9 |
| 31V | 88.8 | 82.5 | 76.2 | 162 | 180 | 340 | 58 | M16 | M12 | M10 | 75 | 32 | 19 | 19 | 125h8 | 9 |
| 41V | 102 | 94 | 76.2 | 186 | 180 | 378.5 | 58 | M16 | M12 | M10 | 90 | 38 | 19 | 20 | 125h8 | 9 |
| 32V | 88.8 | 82.5 | 74.7 | 162 | 180 | 356.5 | 58 | M16 | M12 | M10 | 75 | 32 | 25 | 19 | 125h8 | 9 |
| 42V | 102 | 94 | 74.7 | 186 | 180 | 401.5 | 58 | M16 | M12 | M10 | 90 | 38 | 25 | 20 | 125h8 | 9 |
